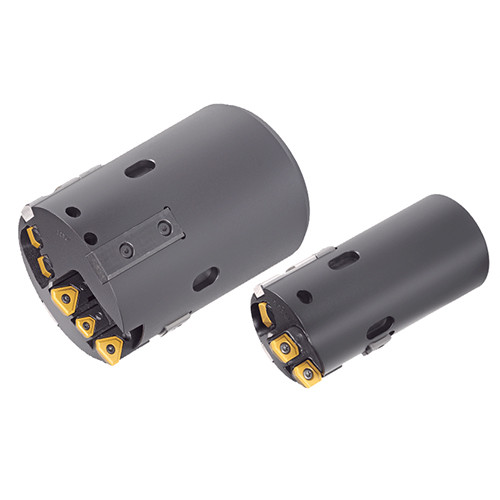

DSD-IC 61.00-67.99
Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

מידע טכני

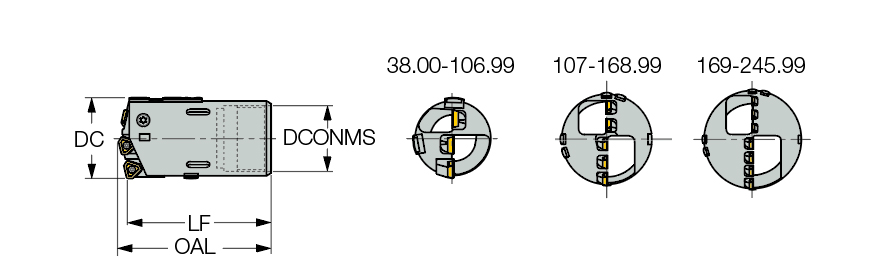

יישום | | Deep Drilling | | מידת הברגה של החיבור (Ts) | TS-O21 |
קוטר דפינה למכונה (DCONMS) | 53 mm | קוטר חיתוך מינימלי (DCN) | 61 mm |
סוג כלי | Deep Hole / Gun Drill | קוטר חיתוך מקסימלי (DCX) | 67.99 mm |
אורך קנה (LS) | 40 mm | סוג מידה | Metric |
אורך כללי (OAL) | 119 mm | סוג חומר הגוף | Steel |
אספקת נוזל קירור (CSP) | Coolant Thru | יחידת מידה | M |


מאפייני מוצר
תיאור הקבוצה | Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
הערות | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide,click on More Info Ordering example: DSD-IC 67.30 |
